| Title | DESCRIPTION | UNIT | VTC - 135 |
|
STROKE / TRAVERSE |
X Axis | mm | 140 |
| Z Axis | mm | 280 | |
| Rapid traverse rate X & Z | m/min | 20 | |
| Traverse Screws | Type | Ball Screw | |
| Guide Ways | Type | LM Guide | |
|
CAPACITY |
Chuck Dia | mm | 135 |
| Max Turning Dia | mm | 180 | |
| Max Turning Length From Chuck Face | mm | 200 | |
| Swing Over Bed | mm | 300 | |
|
SPINDLE |
Spindle Nose | Type | A2 – 4 |
| Spindle speed | rpm | 5000 | |
| Max Bar Capacity | mm | 25 | |
| Spindle Motor power (Cont./15mins.) | kW | 3.7 / 5.5 | |
|
ACCURACY & INCREMENT |
Positioning Accuracy | mm | 0.01 |
| Repeatability | mm | ± 0.005 | |
| Resolution | mm | 0.001 | |
| Min. Input Increment | mm | 0.001 | |
|
TOOLING |
8 Station Turret ( Pragati Make ) | Type | BTP 63 |
| Tool Shank Cross Section | mm | 20 x 20 | |
| Max Boring Bar Capacity | mm | 32 | |
|
CNC SYSTEM |
Controller | Type | SIEMENS |
| Motors & Drives | Type | SIEMENS Servo | |
|
TAIL STOCK |
Quill Diameter | mm | 40 |
| Quill Stroke | mm | 90 | |
| Internal Taper | Type | MT3 | |
| Base Travel | mm | 160 | |
|
MACHINE SIZE |
Front x Side | mm | 2100 x 1300 |
| Machine weight (Approx) | kg | 2100 KG | |
|
WEIGHT |
2100 KG | ||
G-code is a standardized programming language used to control computer numerical control ( CNC ) machines.
Read More
The machine will be utilized for Training purposes to understand the CNC Technology & Machine operations.
Read More
A G-code program consists of lines of X Y and Z coordinates and commands that tell a CNC machine where to go and what to do.

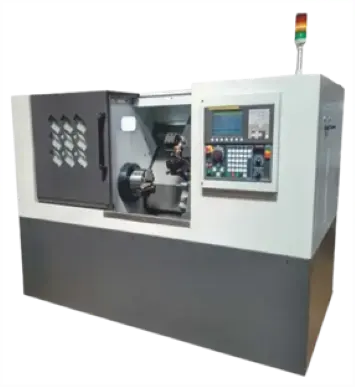

Read MoreCadMech Offering Intermediate CNC Turning Trainer Machine: Flex Turn, CNC Trainer Lathe Machinery, Computer Numerical etc.
