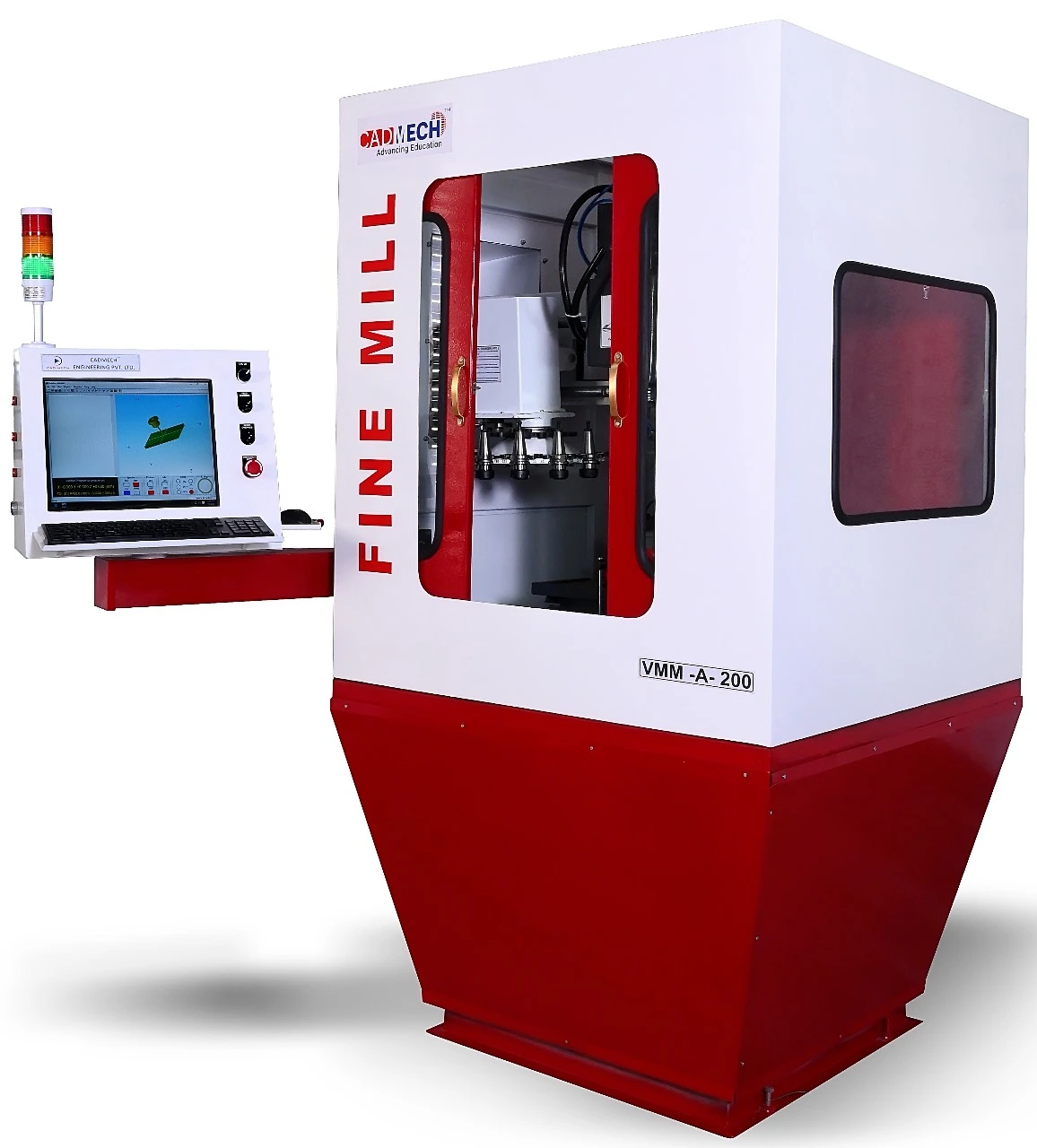

CNC Mill Trainers with PC Based Controller


CNC Mill Trainers with PC Based Controller

Features:

  • Rugged Machine with Ground Bed
  • 12 Station Programmable ATC
  • Industrial Motion Controller
  • Latest Technological Platform for Software
  • Interactive CNC Part Programming Software
  • 3D Material Removal Simulation
  • STL Import / Export Facility
  • Innovative live View on Screen
  • Customizable Tool Library
  • Customizable STK Design
  • Manual Pulse Generator (Optional)
  • FMS & CIM Compatibility
  • FMS & CIM Compatibility
  • Hydraulic Chuck (Optional)
  • Auto Door (Optional)


Machine Specifications:

 Model :  VMM-A- 200
 X – Axis Travel :  250 mm
 Y – Axis Travel :  175 mm
 Z – Axis Travel :  200 mm
 Table Size  :  500 x 200 mm
 Spindle Nose to Table Top :  40 – 190 mm
 Spindle to Column  :  110 mm
 Spindle Inside Taper :  BT 30 / ISO 30
 Maximum Tool Size :  Diameter 12 mm, Length 70 mm
 Spindle Motor    2 H.P DC Motor with 3000 RPM
 Resolution  :  0.005 mm
 Repeatability :  ± 0.01 mm
 Automatic Lubrication Points :  Provided
 Interpolation  :  Linear, Circular
 Programmable Feed Rate   :  ø - 800 mm/Min.0- 800 mm/Min.( X,Y,Z )
 Rapid Feed Rate :  ø - 1200 mm/Min.( X,Y,Z )
 Control System :  PC Based System
 Automatic Tool Changer :  12 Station ( Pneumatic )
 Lubrication   :  Centralized ( Programmable )
 Axis Motor  :  Stepper Motor
 Mains Supply   :  230 V AC, 1 Phase For Machine and 3 Phase 415 V AC for ATC
 Machine Dimensions  :  Approx. 1200 x 1200 x 1800 mm
 Total Weight  :  Approx. 1200 Kg.

Enquire Now Call Us

Our Successful Installation of CNC Mill Trainer


Client Name  Description
Bajaj Institute of Technology, Wardha Successful Installation of CNC Mill Trainer at Bajaj Institute of Technology, Wardha
Bamboo Research and Training Centre, Chichpalli, Chandrapur Successful Installation of CNC Mill Trainer at Bamboo Research and Training Centre, Chichpalli, Chandrapur
SSBT’s College of Engineering and Technology, Jalgaon Successful Installation of CNC Mill Trainer at SSBT’s College of Engineering and Technology, Jalgaon
Tatyasaheb Kore Institute of engineering and technology, Kolhapur Successful Installation of CNC Mill Trainer at Tatyasaheb Kore Institute of engineering and technology, Kolhapur
Govt. Polytechnic, Pajarpol, Ahmedabad Successful Installation of CNC Mill Trainer at Govt. Polytechnic, Pajarpol, Ahmedabad
Savli incubation Centre, Savli Successful Installation of CNC Mill Trainer at Savli incubation Centre, Savli
Alwar Institute of Tech. Alwar, Rajasthan Successful Installation of CNC Mill Trainer at Alwar Institute of Tech. Alwar, Rajasthan
Arya College of Engineering, Jaipur, Rajasthan Successful Installation of CNC Mill Trainer at Arya College of Engineering, Jaipur, Rajasthan
Deep Training Institute, Alwar, Rajasthan Successful Installation of CNC Mill Trainer at Deep Training Institute, Alwar, Rajasthan
Vignan's Institute Of Information Technology, Visakhapatnam. Successful Installation of CNC Mill Trainer at Vignan's Institute Of Information Technology, Visakhapatnam.
K.I.E.T Meerut, U.P Successful Installation of CNC Mill Trainer at K.I.E.T Meerut, U.P
K. P. Engineering College, Agra, U. P Successful Installation of CNC Mill Trainer at K. P. Engineering College, Agra, U. P
Sarasvati Institute of Engineering & Technology, Ghaziabad, U. P Successful Installation of CNC Mill Trainer at Sarasvati Institute of Engineering & Technology, Ghaziabad, U. P
Shri Ram College of Engineering & Management Gwalior, U.P Successful Installation of CNC Mill Trainer at Shri Ram College of Engineering & Management Gwalior, U.P
Shri Satya Sai University of Tech &Medical Science, Agra Successful Installation of CNC Mill Trainer at Shri Satya Sai University of Tech &Medical Science, Agra
Mehr Chand Polytechnic College, Jalandhar Successful Installation of CNC Lathe Trainer at Mehr Chand Polytechnic College, Jalandhar
University College of Engineering, Arni, Chennai Successful Installation of CNC Mill Trainer at University College of Engineering, Arni, Chennai
University College of Engineering Kanchipuram, Chennai Successful Installation of CNC Lathe Trainer at University College of Engineering Kanchipuram, Chennai
University College of Engineering Villupuram, Chennai Successful Installation of CNC Lathe Trainer at University College of Engineering Villupuram, Chennai
University College of Engineering Ariyalur, Trichy Successful Installation of CNC Lathe Trainer at University College of Engineering Ariyalur, Trichy
University College of Engineering Tirukkuvalai, Trichy Successful Installation of CNC Lathe Trainer at University College of Engineering Tirukkuvalai, Trichy
University College of Engineering Pattukottai, Trichy Successful Installation of CNC Lathe Trainer atUniversity College of Engineering Pattukottai, Trichy
University College of Engineering Panruti, Trichy Successful Installation of CNC Lathe Trainer at University College of Engineering Panruti, Trichy
University College of Engineering Dindigul, Madurai Successful Installation of CNC Lathe Trainer at University College of Engineering Dindigul, Madurai
University College of Engineering Ramanathapuram, Madurai Successful Installation of CNC Lathe Trainer at University College of Engineering Ramanathapuram, Madurai
University College of Engineering Thoothukudi, Tirunelveli Successful Installation of CNC Lathe Trainer at University College of Engineering Thoothukudi, Tirunelveli
University College of Engineering Nagercoil, Tirunelveli Successful Installation of CNC Lathe Trainer at University College of Engineering Nagercoil, Tirunelveli
Techno India Group of Institutions, Kolkata, West Bengal Successful Installation of CNC Lathe Trainer at Techno India Group of Institutions, Kolkata, West Bengal
Meghnad Saha Institute of Technology, Kolkata, West Bengal Successful Installation of CNC Lathe Trainer at Meghnad Saha Institute of Technology, Kolkata, West Bengal
Batanagar Institute of Engineering Management & Science, Kolkata, West Bengal Successful Installation of CNC Lathe Trainer at Batanagar Institute of Engineering Management & Science, Kolkata, West Bengal
Camellia Institute Of Technology, Kolkata Successful Installation of CNC Lathe Trainer at CMC College of Engg. Coimbatore
Institute of Engineering & Management, Salt lake, Kolkata Successful Installation of CNC Lathe Trainer at Institute of Engineering & Management, Salt lake, Kolkata
Camellia School of Engineering and Technology, Barasat, Kolkata Successful Installation of CNC Lathe Trainer at Camellia School of Engineering and Technology, Barasat, Kolkata
University of Engineering and Management, Salt Lake, Kolkata Successful Installation of CNC Lathe Trainer atUniversity of Engineering and Management, Salt Lake, Kolkata
Govt. Polytechnic, Dumka, Jharkhand Successful Installation of CNC Lathe Trainer at Govt. Polytechnic, Dumka, Jharkhand
National Institute of Technology, Jamshedpur, Jharkhand Successful Installation of CNC Lathe Trainer at National Institute of Technology, Jamshedpur, Jharkhand
NTPC Ltd. Successful Installation of CNC Lathe Trainer at NTPC Ltd.
Cambridge Institute of Technology, Ranchi. Successful Installation of CNC Lathe Trainer at Cambridge Institute of Technology, Ranchi.
IIT GUWAHATI Successful Installation of CNC Lathe Trainer at IIT GUWAHATI

CNC Mill Trainer Types

Benchtop CNC Mill Trainer

These are compact and typically used for educational purposes in classrooms or small workshops. They are designed to provide hands-on training in CNC milling operations while being portable and easy to operate.

Enquire Now Call Us

Desktop CNC Mill Trainer

Similar to benchtop trainers, desktop CNC mill trainers are small-scale machines designed for educational settings. They are often used for introductory CNC milling courses and provide basic training in programming, setup, and operation.

Enquire Now Call Us

Industrial CNC Mill Trainer

Industrial-grade CNC mill trainers are larger and more robust machines designed to simulate real-world manufacturing environments. They offer advanced features and capabilities, allowing students to learn complex machining techniques and programming skills used in industry.

Enquire Now Call Us

3-axis CNC Mill Trainer

These trainers are equipped with a CNC controller capable of controlling the movement of the cutting tool in three axes: X, Y, and Z. They are suitable for teaching fundamental CNC milling operations and programming.

Enquire Now Call Us

4-axis and 5-axis CNC Mill Trainer

These trainers offer more advanced capabilities by allowing machining operations in four or five axes, enabling more complex part geometries to be produced. They are used for teaching advanced CNC milling techniques and programming for multi-axis machining.

Enquire Now Call Us

Mini CNC Mill Trainer

Mini CNC mill trainers are small-scale machines designed for teaching basic CNC milling concepts to beginners or students with limited space. They offer simplified operation and programming interfaces for introductory learning.

Enquire Now Call Us

Integrated CNC Mill Trainer

Some trainers come with integrated curriculum materials, software, and simulation tools to provide a comprehensive learning experience. These systems often include virtual machining environments where students can practice programming and simulate machining operations before working on the actual machine.

Enquire Now Call Us

CNC Mill Trainer Features


Versatile CNC Machining Capabilities Our CNC Mill Trainer Machines offer versatile machining capabilities suitable for educational institutions, engineering colleges, and CAD-CAM labs. They support a wide range of milling operations, including drilling, tapping, contouring, and pocketing.
Comprehensive Educational Resources Designed specifically for educational purposes, our CNC Mill Trainer Machines come with comprehensive educational resources, including user manuals, tutorials, programming guides, and curriculum-aligned lesson plans.
Modular CNC Mill Trainer Kits We offer modular CNC Mill Trainer Kits that allow educators to customize and expand their training setups according to specific curriculum requirements and learning objectives.
PC-Based CNC Mill Machines 4. Our PC-based CNC Mill Machines feature user-friendly interfaces and software compatibility with popular CAD-CAM packages, enabling seamless integration into educational environments and engineering labs.
Tabletop Trainer CNC Mill Compact and portable, our Tabletop Trainer CNC Mill machines are ideal for small workshops, classrooms, and training facilities with limited space, without compromising on functionality or performance.
Demonstration Purposes Our CNC Mill Trainer Machines are perfect for demonstration purposes, allowing educators to showcase machining processes, toolpath simulations, and programming techniques to students and visitors.
Precision Engineering for Education Engineered with precision and reliability in mind, our CNC Mill Trainer Machines provide students with hands-on experience in CNC machining, ensuring accuracy and repeatability in their learning endeavors.
Customizable CNC Mill Trainer Models We offer customizable CNC Mill Trainer Models tailored to the specific needs of educational institutions and engineering colleges, including specialized configurations, software integrations, and additional accessories.
Industry-Leading CNC Training Solutions As one of the leading educational CNC machine manufacturers in India, we provide industry-leading CNC training solutions that empower students with practical skills and knowledge in advanced manufacturing technologies.
User-Friendly Operation Our CNC Mill Trainer Machines feature intuitive interfaces and ergonomic designs, making them suitable for users of all skill levels, from beginners to advanced learners, in educational and training settings.

CNC Mill Trainer Applications

Educational Institutions

CNC mill trainers are widely used in technical schools, colleges, and universities for teaching courses in machining, manufacturing, engineering, and related disciplines. They provide hands-on training in CNC milling operations, programming, and machining techniques.

Vocational Training Centers

Vocational training centers utilize CNC mill trainers to offer specialized courses in CNC machining and programming. These programs prepare students for careers in manufacturing, tool and die making, precision machining, and other industrial sectors.

Industry Training Facilities

Industries often use CNC mill trainers for employee training and skill development programs. These trainers allow workers to learn new machining techniques, programming skills, and equipment operation procedures without interrupting production on the shop floor.

Research and Development

CNC mill trainers are employed in research and development laboratories to prototype new product designs, test manufacturing processes, and investigate advanced machining technologies. Researchers use these machines to explore innovative machining methods and optimize manufacturing processes.

Hobbyists and DIY Enthusiasts

Hobbyists and DIY enthusiasts use CNC mill trainers for personal projects, home workshops, and small-scale manufacturing ventures. These individuals may create custom parts, prototypes, or artistic designs using CNC milling technology for personal enjoyment or entrepreneurial pursuits.

Rapid Prototyping

CNC mill trainers are valuable tools for rapid prototyping applications in various industries, including aerospace, automotive, medical, and consumer electronics. Engineers and designers use CNC milling to quickly fabricate prototype parts and test their functionality, fit, and performance before mass production.

Production Manufacturing

In addition to training and prototyping, some CNC mill trainers are employed in small-scale production manufacturing environments. These machines are used to produce low-volume batches of parts with high precision and repeatability, catering to niche markets or custom orders.

Skill Competitions

CNC mill trainers are sometimes utilized in skill competitions such as SkillsUSA, WorldSkills, and other vocational and technical competitions. Students compete in CNC machining events to demonstrate their proficiency in programming, setup, and machining tasks using CNC mill trainers.


FAQ'S

A CNC mill trainer is a specialized machine used for educational purposes to teach students CNC milling operations, programming, and machining techniques.

CNC mill trainers provide hands-on training opportunities for students in technical schools, colleges, and universities, helping them develop practical skills in CNC machining, which are highly valuable in the manufacturing industry.

When choosing a CNC mill trainer kit, consider factors such as the machine's size, axis configuration, software compatibility, and educational resources provided with the kit.

PC-based CNC mill machines offer flexibility and compatibility with various software packages, making them ideal for educational settings where students need to learn different programming languages and CAD/CAM software.

Tabletop CNC mill trainers are compact and portable, making them suitable for small workshops or classrooms with limited space. They offer the same functionality as larger machines but in a more space-efficient design.

A CNC mill trainer can be used to demonstrate various machining processes, toolpath simulations, and programming techniques to students, educators, or visitors interested in learning about CNC technology.

Many CNC mill trainer models come with comprehensive educational materials such as textbooks, tutorials, online resources, and training videos to support instructors and students in learning CNC machining concepts.

In India, some popular educational CNC machine manufacturers include CAD-MECH, known for their quality CNC mill trainers and other educational machinery.

Integrating a CNC mill trainer into a CAD-CAM lab allows students to design parts using CAD software, generate toolpaths using CAM software, and then machine those parts on the CNC mill trainer, providing a complete learning experience.

Educational CNC mill trainers are specifically designed for teaching purposes, with features such as simplified operation, safety mechanisms, and educational resources tailored to students' needs.

Students can develop a range of skills, including CNC programming, machine setup, tool selection, material handling, quality control, and problem-solving, through hands-on experience with a CNC mill machine trainer.

Yes, CNC trainers are designed to accommodate beginners and learners with varying levels of experience. They often include user-friendly interfaces and guided tutorials to help novices get started with CNC machining.

Absolutely! CNC mill trainers are commonly used for rapid prototyping in industries such as aerospace, automotive, and medical, allowing engineers and designers to quickly produce prototype parts for testing and evaluation.

Engineering colleges can integrate CNC mill trainers into their curriculum by offering courses or workshops on CNC machining, including lectures, laboratory sessions, and projects that involve hands-on experience with the trainers.

Users should receive proper training on machine operation and safety procedures, wear appropriate personal protective equipment (PPE), keep work areas clean and organized, and follow manufacturer's guidelines for machine maintenance and operation.

Main features of an educational CNC lathe trainer include a user-friendly interface, simulation capabilities, safety features, interactive learning materials, and compatibility with CAD-CAM software for comprehensive CNC training.

While tabletop CNC mill trainers are designed for educational purposes and may not have the same level of rigidity and power as industrial machines, they can still perform a wide range of machining tasks suitable for learning purposes and prototyping.

PC-based CNC mill machines are compatible with various software packages for CAD design, CAM programming, and CNC machining simulation, including popular options such as SolidWorks, Mastercam, and Fusion 360.

Some educational institutions and training organizations offer certifications or credentials for individuals who have completed CNC machining courses or demonstrated proficiency in operating CNC mill trainers.

Regular maintenance tasks for CNC mill trainers may include cleaning, lubricating, checking for worn components, calibrating machine parameters, and performing software updates to ensure smooth operation and accuracy.

When selecting a CNC mill trainer, consider factors such as the curriculum requirements, budget constraints, available space, technical support options, and the specific learning objectives you want to achieve with the equipment.

CAD Mech Engineering offers a comprehensive range of CNC Mill Trainer Machines, including tabletop models, PC-based systems, industrial-grade trainers, and specialized kits tailored for educational institutions.

At CAD Mech Engineering, we prioritize quality at every stage of production. Our CNC Mill Trainer Machines undergo rigorous testing and inspection processes to ensure they meet industry standards for performance, precision, and reliability.

Yes, CAD Mech Engineering provides customization options for CNC Mill Trainer Machines to meet the unique needs of educational institutions. We can tailor features, specifications, and software packages to align with curriculum objectives and learning outcomes.

Along with our CNC Mill Trainer Machines, CAD Mech Engineering offers comprehensive educational resources, including user manuals, tutorials, programming guides, and technical support materials to facilitate effective teaching and learning experiences.

CAD Mech Engineering is committed to providing exceptional customer support throughout the lifecycle of our products. We offer technical assistance, maintenance services, software updates, and training programs to ensure customers maximize the value of their CNC Mill Trainer Machines.

Yes, CAD Mech Engineering conducts training programs and workshops for educators and students to familiarize them with our CNC Mill Trainer Machines' operation, programming, and maintenance. These programs are designed to enhance teaching effectiveness and student learning outcomes.

CAD Mech Engineering's CNC Mill Trainer Machines stand out for their superior quality, innovative features, user-friendly interfaces, and comprehensive educational support. We continuously strive to exceed customer expectations and deliver value-driven solutions.

Absolutely! CAD Mech Engineering welcomes customers to schedule demonstrations of our CNC Mill Trainer Machines at our facility or arrange virtual presentations to showcase their capabilities, features, and applications.

Yes, CAD Mech Engineering's CNC Mill Trainer Machines cater to users of all skill levels, from beginners with no prior experience in machining to advanced users seeking to refine their skills. Our trainers feature intuitive interfaces and scalable functionality to accommodate diverse learning needs.

To request a quotation or place an order for CAD Mech Engineering's CNC Mill Trainer Machines, simply contact our sales team via email, phone, or our website's inquiry form. Our representatives will assist you promptly and provide personalized solutions to meet your requirements.
