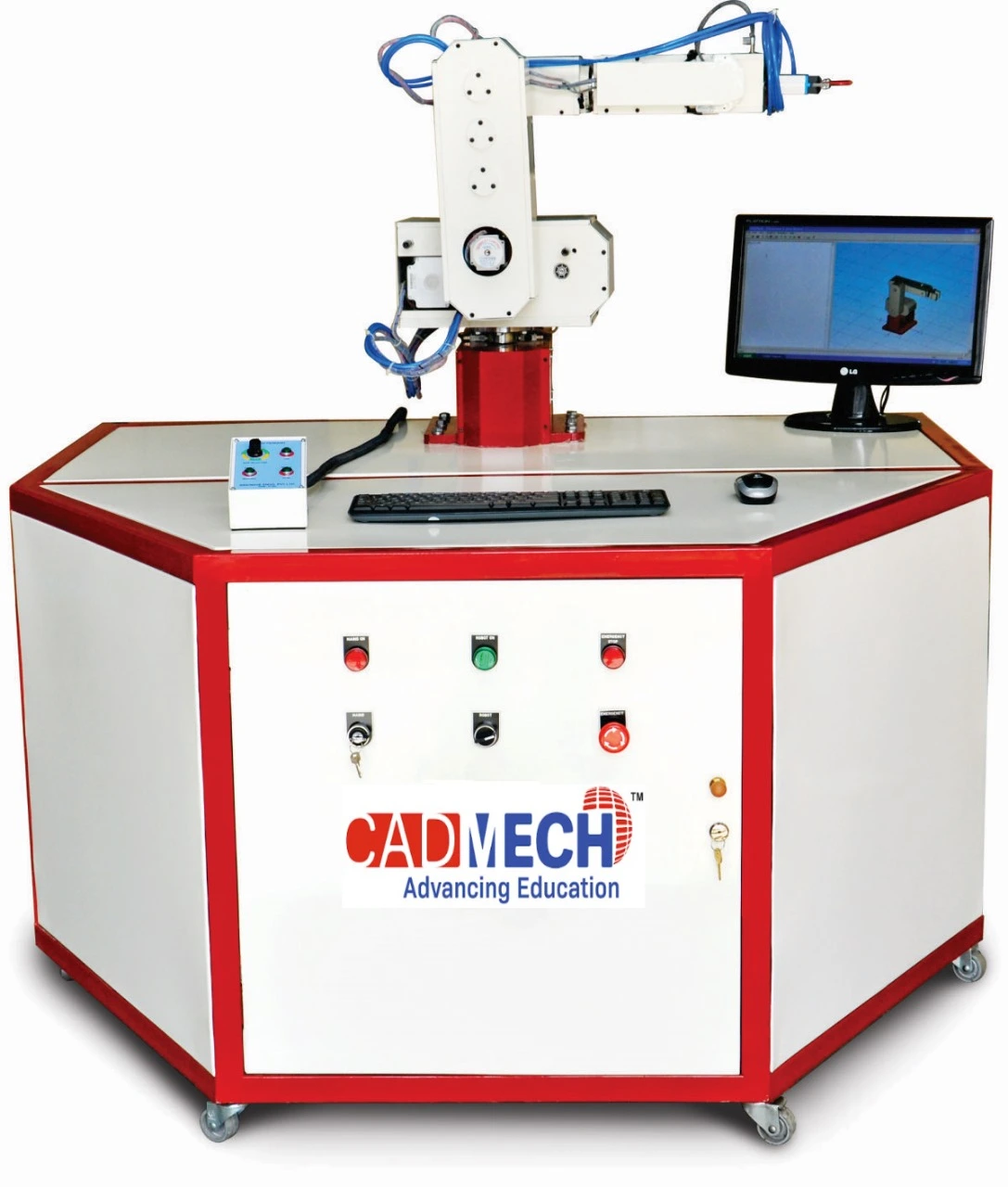

6 AXIS robotics TRAINERS
Features:
Compact Design For Training Purpose
Industrial Motion Controller

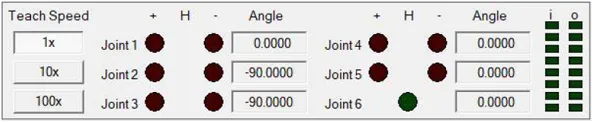

Teach Pendant Facility
Programmable Digital I/O
Latest Technological Platform for software
Interactive Programming Software
Powerful 3D Simulation, Online and Offline
FMS & CIM Compatibility
Machine Specifications:
No of Axis
: 6
Link 1
:300 mm
Link 2
: 300 mm
Joint Actuator
: DC Stepper Motor
Transmission
: Timing Belt Drive
Position Feedback
: Proximity Switch
Gripper Actuator
: Pneumatic
Weight of Robotics
: 50 Kg
Accuracy
: ±0.3
Repeatability
: ±0.2
Tip Velocity Range
: 500 mm/min
Payload Capacity
: 2 Kg (including gripper)
Specifications
J1 - Waist
: ± 140°
J2 - Shoulder
: -100° to 60°/td>
J3 - Elbow
: -70° to +10°
J4 - Wrist Rotate
: ± 70°
J5 - Wrist Pitch
: ± 35°
J6 - Wrist Roll
: ± 180°
External I/O
8 Programmable Digital Inputs
8 Programmable Digital Outputs
Enquire Now
Call Us
Enquire Now
×
Submit
Our Successful Installation of 6 AXIS Robotics Trainer

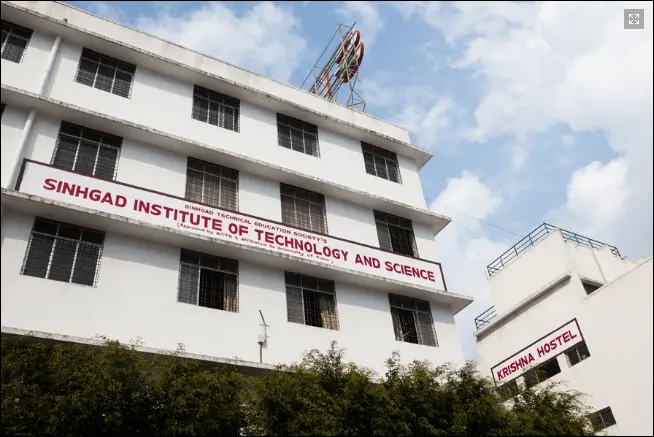

Sinhgad Institute of Technology, Pune
Successful installation of 6 axis robotics trainer at Sinhgad Institute of Technology, Pune.
Bharti Vidyapeeth’s COE, Pune
Successful installation of 6 axis robotics trainer at Bharti Vidyapeeth’s COE, Pune.
Bharti Vidyapeeth’s Institute of Technology, Navi Mumbai
Successful installation of 6 axis robotics trainer at Bharti Vidyapeeth’s Institute of Technology, Navi Mumbai.

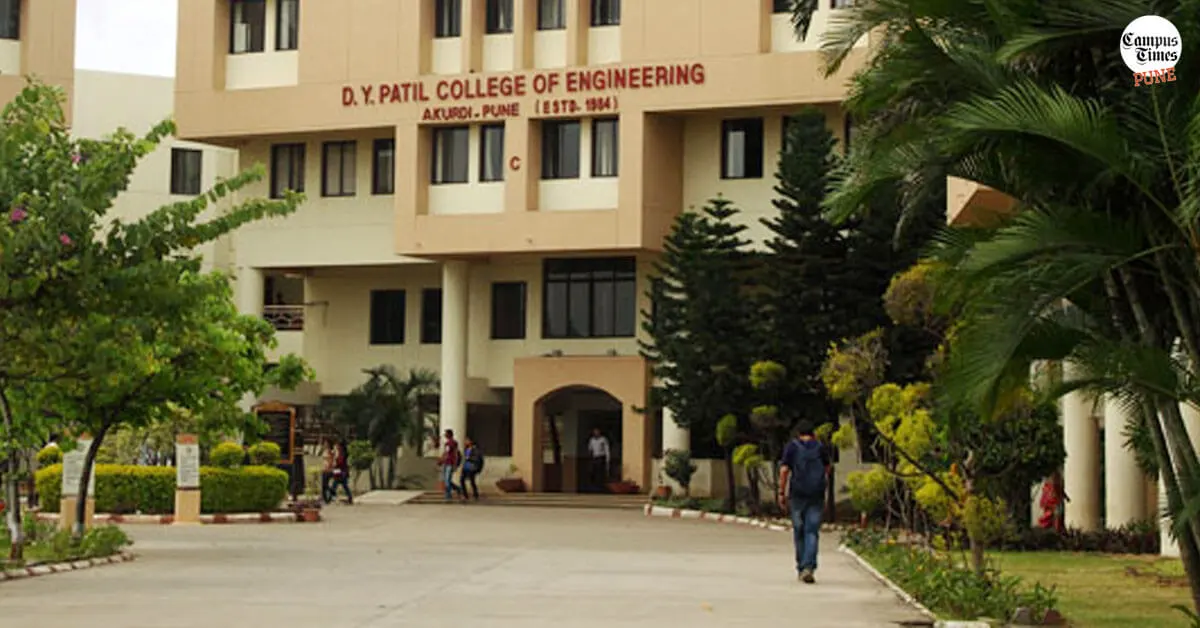

D. Y. Patil COE, Akurdi, Pune
Successful installation of 6 axis robotics trainer at D. Y. Patil COE, Akurdi, Pune.
NIT, Jamshedpur
Successful installation of 6 axis robotics trainer at NIT, Jamshedpur.
Thejus Engineering College, Kerala
Successful installation of 6 axis robotics trainer at Thejus Engineering College, Kerala.
Marian College of Engineering, Trivandrum
Successful installation of Pneumatic Trainer kit at Madhusudan Government I.T.I College , Cuttack
Ideal Institute of Engineering, Nadia, West Bengal
Successful installation of 6 axis robotics trainer at Ideal Institute of Engineering, Nadia, West Bengal
P.T. Lee Changalvaraya Naicker Polytechnic, Chennai
Successful installation of 6 axis robotics trainer at P.T. Lee Changalvaraya Naicker Polytechnic, Chennai

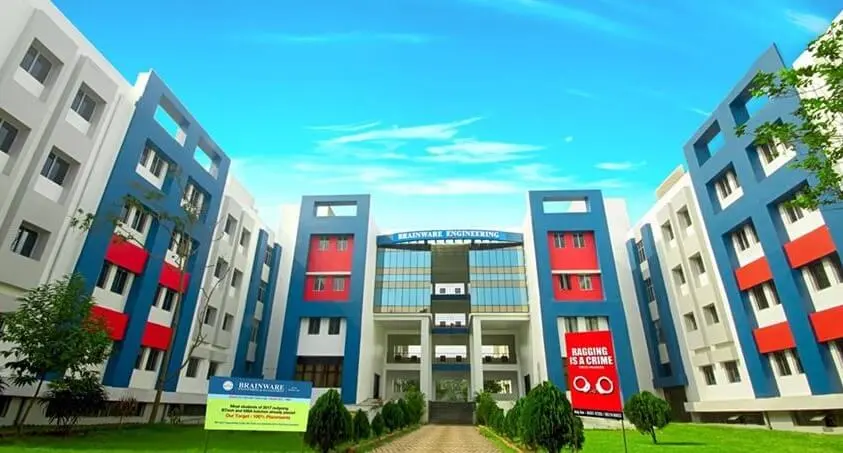

Brainware Group of Institutions, Barasat, Kolkata
Successful installation of 6 axis robotics trainer at Brainware Group of Institutions, Barasat, Kolkata
Heritage Institute of Technology, Anandpur, Kolkata
Successful installation of 6 axis robotics trainer at Heritage Institute of Technology, Anandpur, Kolkata
College of Engineering & Management, Kapurthala, Punjab
College of Engineering & Management, Kapurthala, Punjab

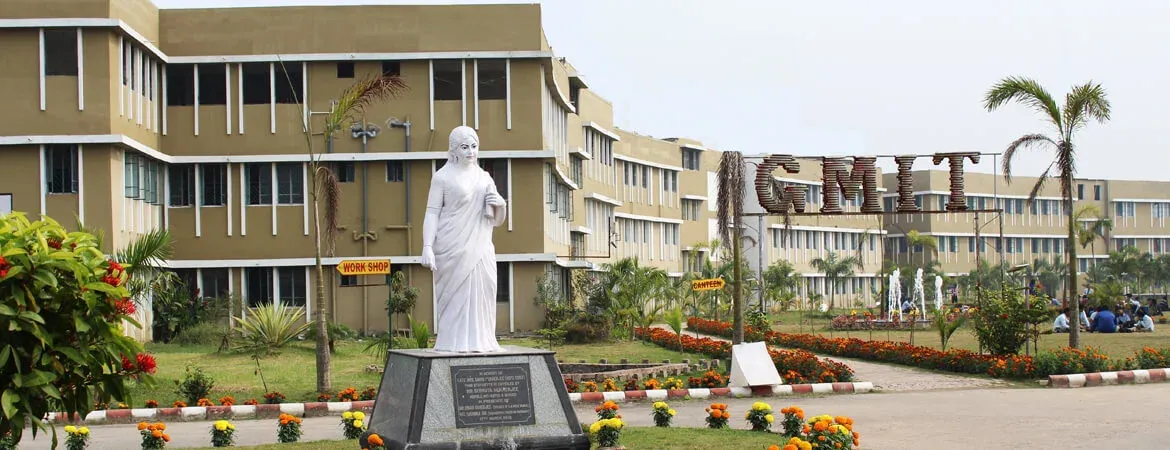

Gargi Memorial IT, Balarampur, Kolkata
Successful installation of 6 axis robotics trainer at Gargi Memorial IT, Balarampur, Kolkata
Asansol Engineering College, Asansol
Successful installation of 6 axis robotics trainer at Asansol Engineering College, Asansol
Meghnad Saha Institute of Technology, Kolkata
Successful installation of 6 axis robotics trainer at Meghnad Saha Institute of Technology, Kolkata

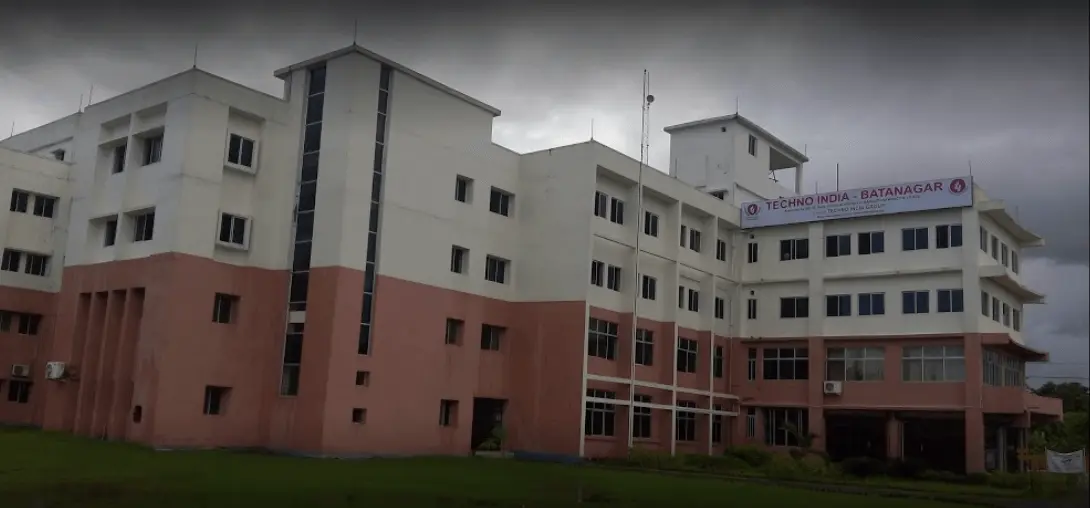

Batanagar Institute of Engineering Management and Science, Kolkata
Successful installation of 6 axis robotics trainer at Batanagar Institute of Engineering Management and Science, Kolkata

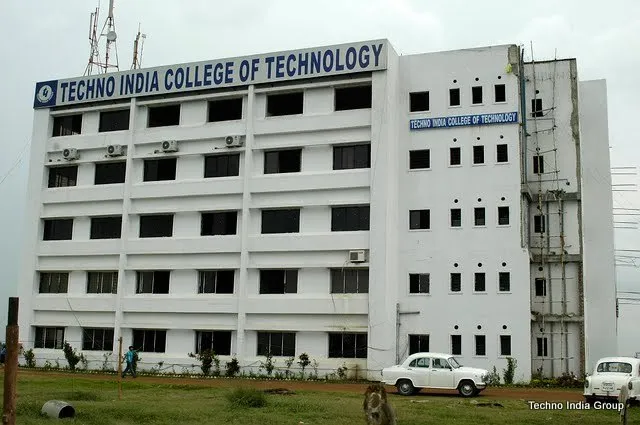

Techno India College of Technology, Kolkata
Successful installation of 6 axis robotics trainer at Techno India College of Technology, Kolkata
Netaji Subhash Engineering College, Kolkata
Successful installation of 6 axis robotics trainer at Netaji Subhash Engineering College, Kolkata
Future Institute of Engineering & Mgmt, Sonarpur, Kolkata
Successful installation of 6 axis robotics trainer at Future Institute of Engineering & Mgmt, Sonarpur, Kolkata

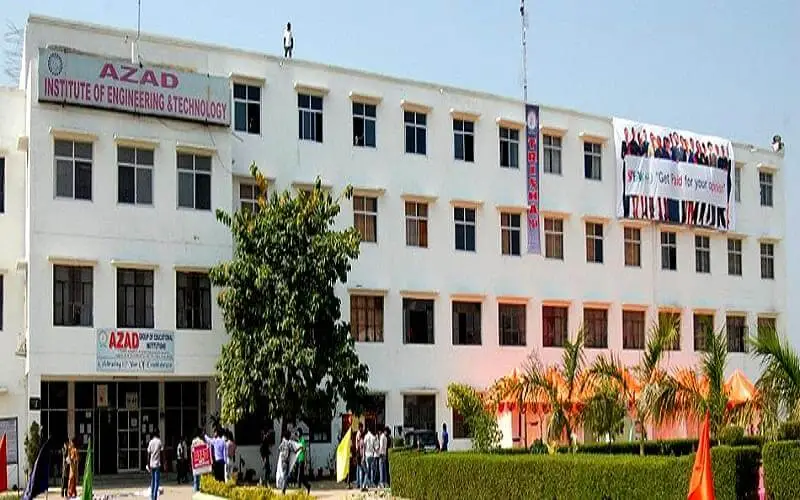

Azad Institute of Engineering & Technology, Lucknow
Successful installation of 6 axis robotics trainer at Azad Institute of Engineering & Technology, Lucknow
O.P. Jindal Institute of Technology, Panjipatha, Raigarh
Successful installation of 6 axis robotics trainer at O.P. Jindal Institute of Technology, Panjipatha, Raigarh
College of Engineering and Management, Punnapra
Successful installation of 6 axis robotics trainer at College of Engineering and Management, Punnapra

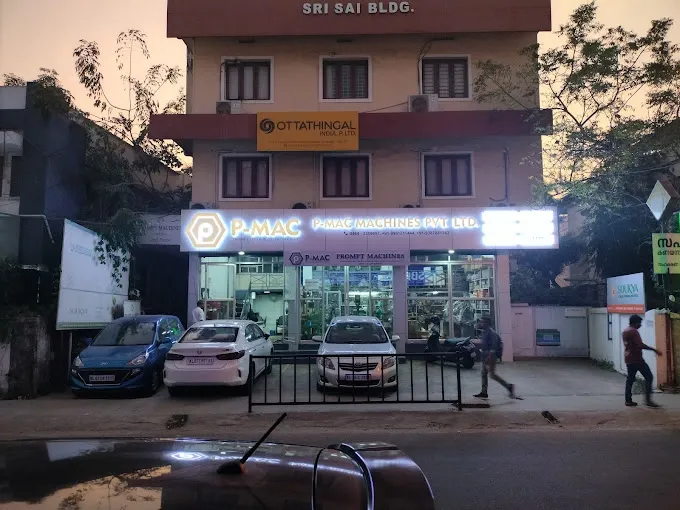

Prompt Machine Tools, Cochin, Kerala
Successful installation of 6 axis robotics trainer at Prompt Machine Tools, Cochin, Kerala
V-Tech Instrumentation (India) Pvt. Ltd., Kerala
Successful installation of 6 axis robotics trainer at V-Tech Instrumentation (India) Pvt. Ltd., Kerala
Jinasena Innovation & Technology Institute, Sri Lanka
Successful installation of 6 axis robotics trainer at Jinasena Innovation & Technology Institute, Sri Lanka
←
→
