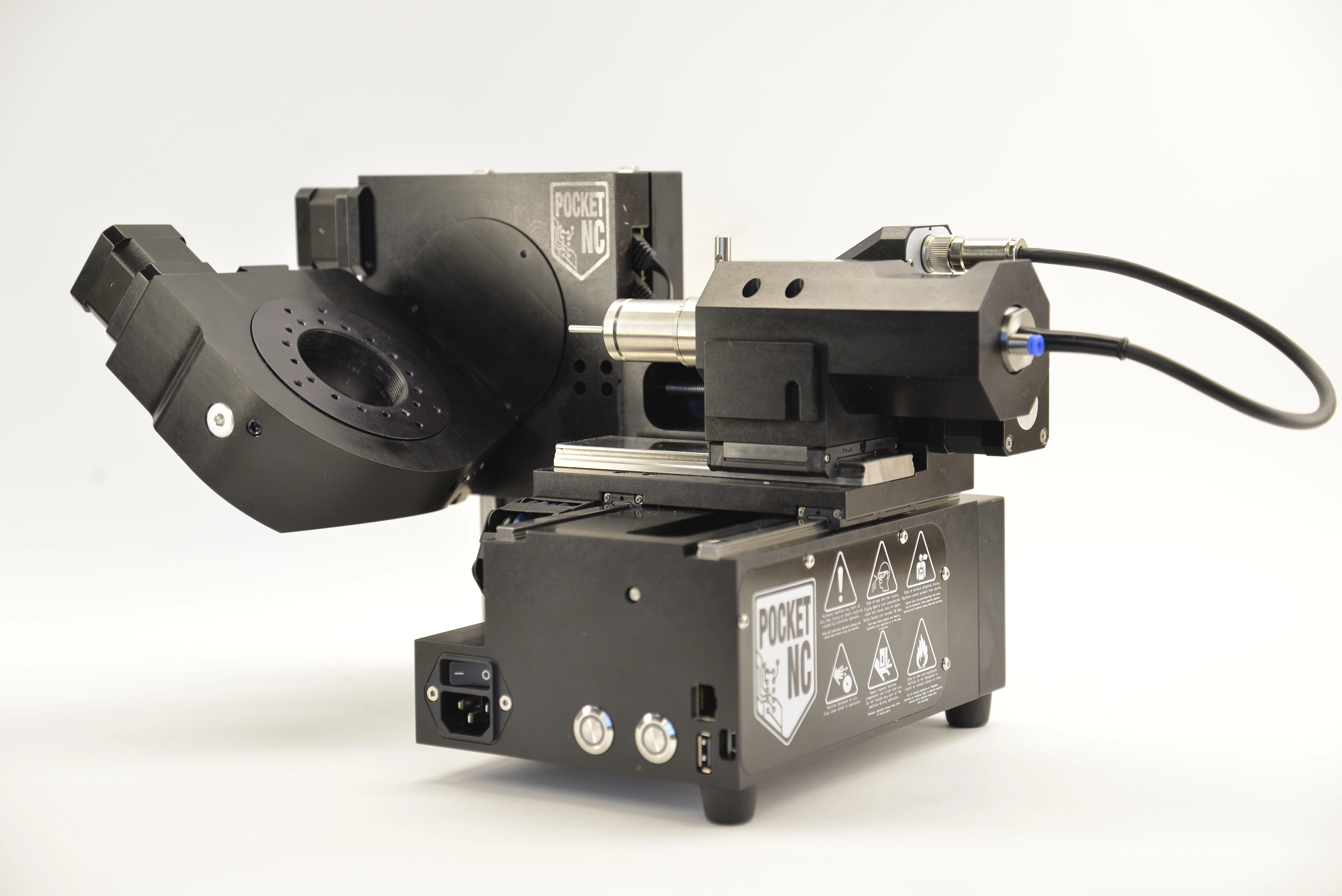

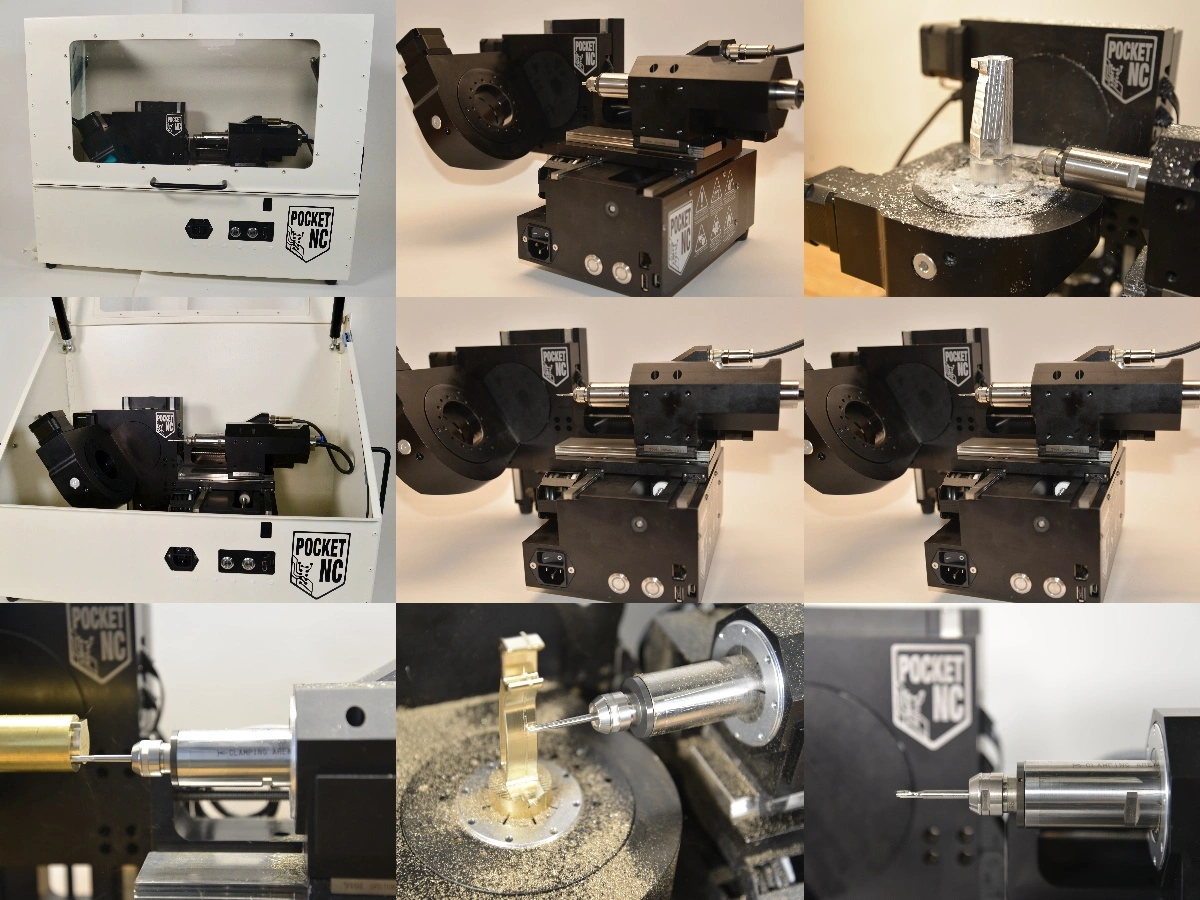

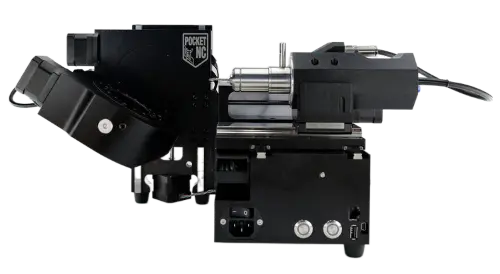

POCKET NC V2-50CHB/CHK
POCKET NC V2-50CHB/CHK
MAX TRAVEL
MAX TRAVEL
X:4.55 in(115.5mm)
Y:5.05 in(128.3mm)
Z:3.55 in (90.1mm)
A:-25° to 135°
B:Continuous Rotation
(-9999° to 9999°)
X:4.55 in(115.5mm)
Y:5.05 in(128.3mm)
Z:3.55 in (90.1mm)
A:-25° to 135°
B:Continuous Rotation
(-9999° to 9999°)
Tested on G5 Titanium ,
6061 aluminum ,
303 stainless ,machinable wax,acetal
accepts standard G Code.
Test G.Code
at sim.pocketnc.com
Tested on G5 Titanium ,
6061 aluminum ,
303 stainless ,machinable wax,acetal
accepts standard G Code.
Test G.Code
at sim.pocketnc.com
www.pocketnc.com
info@pocketnc.com
Phone:+1.406.451.3799
www.pocketnc.com
info@pocketnc.com
Phone:+1.406.451.3799
Phone:+91 83800 01463
Whatsapp: +91 97637 19531
Email: admin@cadmech.co.in
Website: www.vrampsystems.com
www.vrampsystems.com
Phone:+91 83800 01463
Whatsapp: +91 97637 19531
Email: admin@cadmech.co.in
Website: www.vrampsystems.com
www.vrampsystems.com
| AXIS | MAX TRAVEL | SPEED |
| X | 4.55 in(115.5 mm) | 60 in /min(1524 mm/in) |
| Y | 5.5 in(128.3 mm) | 60 in /min(1524 mm/in) |
| Z | 3.55 in(90.1 mm) | 60 in /min(1524 mm/in) |
| A | -25° + 135° | 40° /second |
| B | Continuous rotation(-9999° to 9999°) | 40° /second |
| Machine Control | |
| Texas instruments Arm Cortex A8 running Machine kit/Rockhopper | |
| Accepts Standard Gcode | |
| Z – Maximum Payload | 10KG |
| Features |
Spinddle Override Feed Override Stop,Start,Pause 5 axis simultaneous movements |
| Connectivity | Ethernet ,USB and mini USB |
| Power Source | 90-264,VAC,127-370 VDC,47-63HZ |
| AXIS | BACKLASH |
| X & Y | 0.0005 in(12.7 m) at tool base |
| Z | Backlash at 18 pound(8.16 kg) load: 0.005 in (12.7 um) |
| A & B | 0.01° |
| COMPONENTS | |
| 6061 Aluminum Frame, 0.001in(+/-25.4 um) squareness in axes | |
| Machine Footprint:17.5 in(444.5 mm) X12.5 in(279.3mm) | |
| 5NEMA 17 Motors | 3 linear lead screws with preloaded nuts 2 Rotary Warm Drives |
| Linear Bearings | 9 and 42mm ,10 % preloaded |
| Integrated angular contact rotary bearings | |
| AXIS | RESOLUTION & REPETABILITY |
| XYZ |
Resolution 0.00024 in (6.10 um) Homing repeatability 0.0005 in(12.7 um) Repeatability 0.0002 in (50.8um) at 0% |
| A&B |
Resolution 0.01° Homing repeatability 0.05 Repeatability 0.05 at 0% load Runout:<0.002 in (50.8 um) |
| Recommended part tolerance 0.005in (.127mm) | |
1/8 inch CHB collet /1/8 inch CHK collet
3mm end mill,single flute ,1/8" shank
POCKET NC vise and hardware
Limited Pocket NC Warranty
*Solid Seperately:Air Composser(required)
1 CFM(28.3L)/minute of air at 25 psi
| SPINDLE | ||
| NSK Spindle Mode | NRR-2651 | NR-2551 |
| Tool Change |
Lever Type CHB Collet |
Collet Nut CHB Collet |
| Spindle Speed | 1,000-50,000 RPM* | |
| Power | 200 W (Max Power) | |
| Spindle Motor | BLDC 3 Phase with Hall Feedback | |
| Spindle Runout | 0.0001 in(2.5um) | |
Phone:+91 83800 01463
Whatsapp: +91 97637 19531
Email:admin@cadmech.co.in
Website:www.vrampsystem.com
www.cadmech.co.in
X:4.55 in(115.5mm)
Y:5.05 in(128.3mm)
Z:3.55 in (90.1mm)
A:-25° to 135°
B:Continuous Rotation
(-9999° to 9999°)
X:4.55 in(115.5mm)
Y:5.05 in(128.3mm)
Z:3.55 in (90.1mm)
A:-25° to 135°
B:Continuous Rotation
(-9999° to 9999°)
Tested on G5 Titanium ,
6061 aluminum ,
303 stainless ,machinable wax,acetal
accepts standard G Code.
Test G.Code
at sim.pocketnc.com
Tested on G5 Titanium ,
6061 aluminum ,
303 stainless ,machinable wax,acetal
accepts standard G Code.
Test G.Code
at sim.pocketnc.com
www.pocketnc.com
info@pocketnc.com
Phone: +1.406.451.3799
www.pocketnc.com
info@pocketnc.com
Phone: +1.406.451.3799
Phone: +91 83800 01463
Whatsapp: +91 97637,19531
Email: admin@cadmech.co.in
Website:www.vrampsystems.com
www.cadmech.co.in
P: +91 72760 32488,97637 19533
Whatsapp: +91 97637,19531
Email: admin@cadmech.co.in
Website:www.vrampsystems.com
www.cadmech.co.in
| AXIS | MAX TRAVEL | SPEED |
| X | 4.55 in(115.5 mm) | 60 in /min(1524 mm/in) |
| Y | 5.05 in(128.3 mm) | 60 in /min(1524 mm/in) |
| Z | 3.55 in(90.1 mm) | 60 in /min(1524 mm/in) |
| A | -25° + 135° | 40° /second |
| B | Continuous rotation(-9999° to 9999°) | 40° /second |
| Machine Control | |
| Texas instruments Arm Cortex A8 running Machine kit/Rockhopper | |
| Accepts Standard Gcode | |
| Z – Maximum Payload | 10KG |
| Features |
Spinddle Override Feed Override Stop,Start,Pause 5 axis simultaneous movements |
| Connectivity | Ethernet ,USB and mini USB |
| Power Source | 90-264,VAC,127-370 VDC,47-63HZ |
| AXIS | BACKLASH |
| X & Y | 0.0005 in(12.7 m) at tool base |
| Z | Backlash at 18 pound(8.16 kg) load: 0.005 in (12.7 um) |
| A & B | 0.01° |
| COMPONENTS | |
| 6061 Aluminum Frame, 0.001in(+/-25.4 um) squareness in axes | |
| Machine Footprint:17.5 in(444.5 mm) X12.5 in(279.3mm) | |
| 5NEMA 17 Motors | 3 linear lead screws with preloaded nuts 2 Rotary Warm Drives |
| Linear Bearings | 9 and 42mm ,10 % preloaded |
| Integrated angular contact rotary bearings | |
| AXIS | RESOLUTION & REPETABILITY |
| XYZ |
Resolution 0.00024 in (6.10 um) Homing repeatability 0.0005 in(12.7 um) Repeatability 0.0002 in (50.8um) at 0% |
| A&B |
Resolution 0.01° Homing repeatability 0.05 Repeatability 0.05 at 0% load Runout:<0.002 in (50.8 um) |
| Recommended part tolerance 0.005in (.127mm) | |

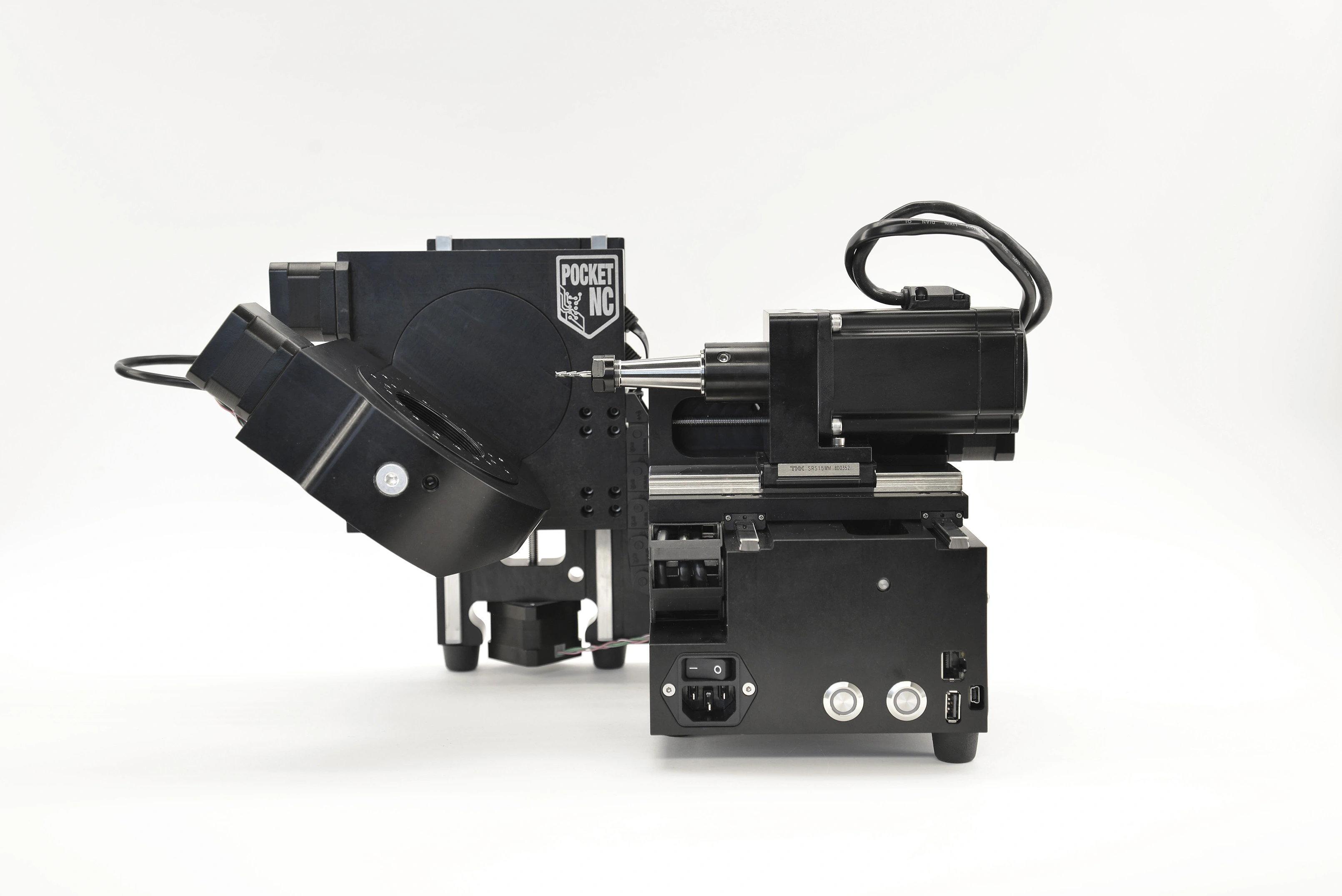

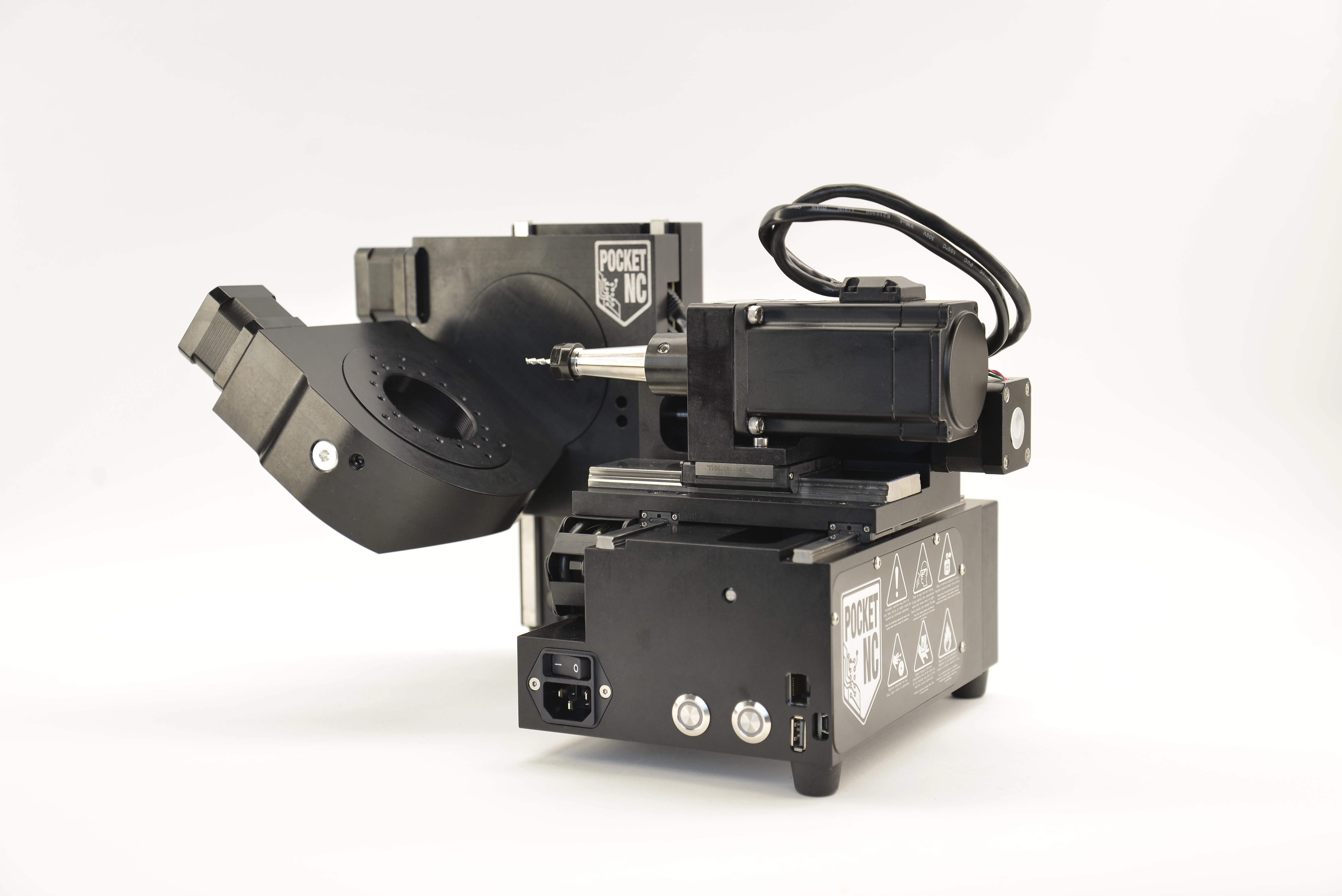

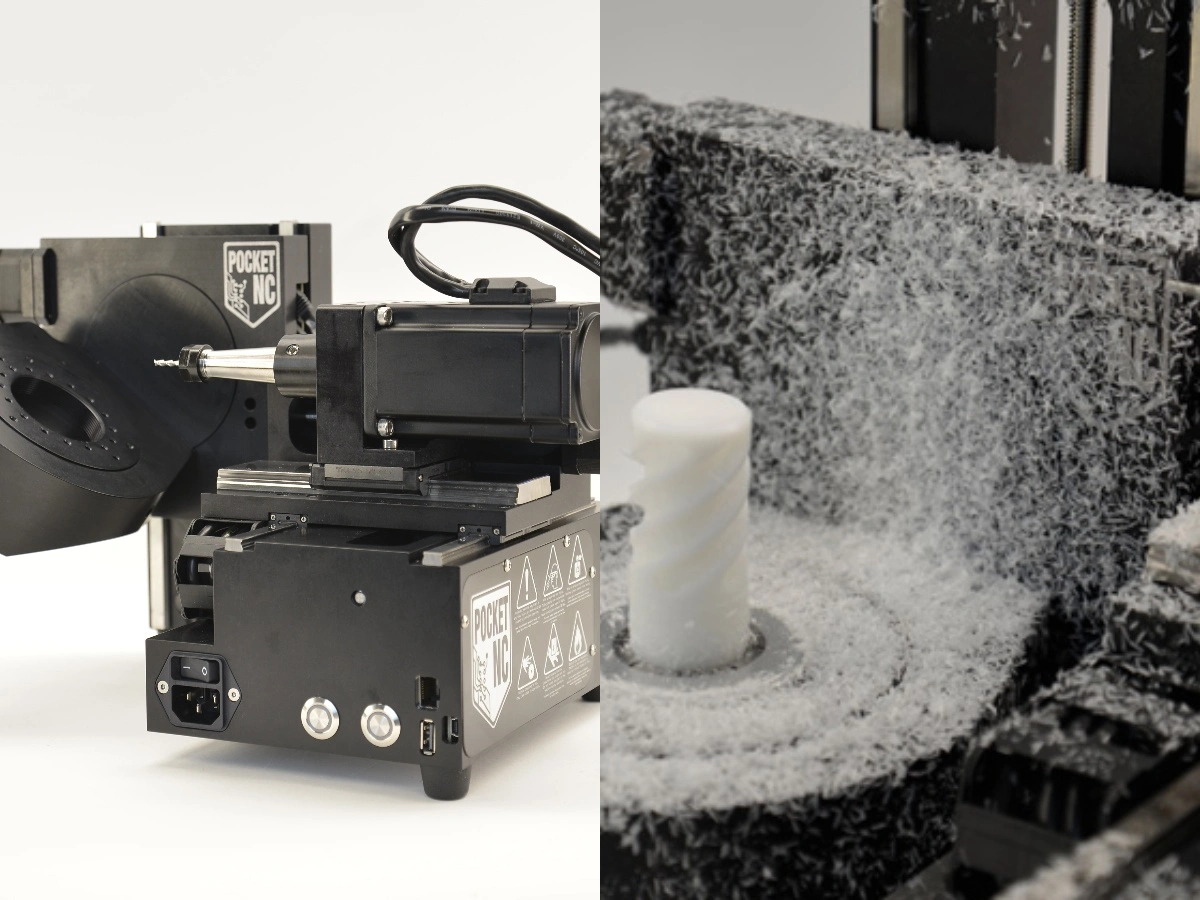

One extended reach tool holder
1/8 inch ER11 collet and nut
1/8 inch sqaure end mill,single flute
Pocket NC vise and hardware
Pocket NC limited 1-year warranty
| SPINDLE | ||
| Spindle Speed | 2,000-10,000 RPM | |
| Power | 200 W (Max Power) | |
| Spindle Motor | BLDC 3 Phase with Hall Feedback | |
| Spindle Runout | ∼0.0005 in(12.7um) | |
| Tool Change | 3mm Hex Key ER11 Collet | |
Phone:+91 83800 01463
Whatsapp: +91 97637 19531
Email:admin@cadmech.co.in
Website:www.vrampsystem.com
www.cadmech.co.in
X:4.55 in(115.5mm)
Y:5.05 in(128.3mm)
Z:3.55 in (90.1mm)
A:-25° to 135°
B:Continuous Rotation
(-9999° to 9999°)
X:4.55 in(115.5mm)
Y:5.05 in(128.3mm)
Z:3.55 in (90.1mm)
A:-25° to 135°
B:Continuous Rotation
(-9999° to 9999°)
Tested on G5 Titanium ,
6061 aluminum ,
303 stainless ,machinable wax,acetal
accepts standard G Code.
Test G.Code
at sim.pocketnc.com
Tested on G5 Titanium ,
6061 aluminum ,
303 stainless ,machinable wax,acetal
accepts standard G Code.
Test G.Code
at sim.pocketnc.com
www.pocketnc.com
info@pocketnc.com
Phone: +1.406.451.3799
www.pocketnc.com
info@pocketnc.com
Phone: +1.406.451.3799
Phone: +91 83800 01463
Whatsapp: +91 97637,19531
Email: admin@cadmech.co.in
Website:www.vrampsystems.com
www.cadmech.co.in
P: +91 72760 32488,97637 19533
Whatsapp: +91 97637,19531
Email: admin@cadmech.co.in
Website:www.vrampsystems.com
www.cadmech.co.in
| AXIS | MAX TRAVEL | SPEED |
| X | 4.55 in(115.5 mm) | 60 in /min(1524 mm/in) |
| Y | 5.5 in(128.3 mm) | 60 in /min(1524 mm/in) |
| Z | 3.55 in(90.1 mm) | 60 in /min(1524 mm/in) |
| A | -25° + 135° | 40° /second |
| B | Continuous rotation(-9999° to 9999°) | 40° /second |
| Machine Control | |
| Texas instruments Arm Cortex A8 running Machine kit/Rockhopper | |
| Accepts Standard Gcode | |
| Z – Maximum Payload | 10KG |
| Features |
Spinddle Override Feed Override Stop,Start,Pause 5 axis simultaneous movements |
| Connectivity | Ethernet ,USB and mini USB |
| Power Source | 90-264,VAC,127-370 VDC,47-63HZ |
| AXIS | BACKLASH |
| X & Y | 0.0005 in(12.7 m) at tool base |
| Z | Backlash at 18 pound(8.16 kg) load: 0.005 in (12.7 um) |
| A & B | 0.01° |
| COMPONENTS | |
| 6061 Aluminum Frame, 0.001in(+/-25.4 um) squareness in axes | |
| Machine Footprint:17.5 in(444.5 mm) X12.5 in(279.3mm) | |
| 5NEMA 17 Motors | 3 linear lead screws with preloaded nuts 2 Rotary Warm Drives |
| Linear Bearings | 9 and 42mm ,10 % preloaded |
| Integrated angular contact rotary bearings | |
| AXIS | RESOLUTION & REPETABILITY |
| XYZ |
Resolution 0.00024 in (6.10 um) Homing repeatability 0.0005 in(12.7 um) Repeatability 0.0002 in (50.8um) at 0% |
| A&B |
Resolution 0.01° Homing repeatability 0.05 Repeatability 0.05 at 0% load Runout:<0.002 in (50.8 um) |
| Recommended part tolerance 0.005in (.127mm) | |
1/8 inch CHB collet /1/8 inch CHK collet
3mm end mill,single flute ,1/8" shank
POCKET NC vise and hardware
Limited Pocket NC Warranty
*Solid Seperately:Air Composser(required)
1 CFM(28.3L)/minute of air at 25 psi
| SPINDLE | ||
| NSK Spindle Mode | NRR-2651 | NR-2551 |
| Tool Change |
Lever Type CHB Collet |
Collet Nut CHB Collet |
| Spindle Speed | 1,000-50,000 RPM* | |
| Power | 200 W (Max Power) | |
| Spindle Motor | BLDC 3 Phase with Hall Feedback | |
| Spindle Runout | 0.0001 in(2.5um) | |
Phone:+91 83800 01463
Whatsapp: +91 97637 19531
Email:admin@cadmech.co.in
Website:www.vrampsystem.com
www.cadmech.co.in
| Multi-Axis Machining | Allowing simultaneous movement in five axes for complex and precise machining operations. |
| Compact Design | Ideal for limited space environments, desktop and tabletop 5-axis CNC machines offer a space-saving solution without compromising on performance. |
| Precision Milling | Capable of achieving high precision milling tasks, ensuring tight tolerances and superior surface finishes. |
| Rapid Prototyping | Specifically designed for rapid prototyping, desktop 5-axis CNC machines enable quick iteration of designs, reducing time to market. |
| Miniature Component Machining | Tailored for machining miniature components with intricate details, small 5-axis CNC machines offer precise control over small-scale manufacturing processes. |
| Versatile Applications | Suitable for a wide range of industries including aerospace, automotive, medical, and jewelry making, 5-axis CNC machines accommodate diverse machining needs. |
| Efficient Production | Enhancing productivity with simultaneous machining in multiple axes, Pocket NC 5-axis CNC machines optimize production processes for efficiency. |
| User-Friendly Interface | Featuring intuitive controls and user-friendly software, desktop 5-axis CNC milling machines ensure ease of operation and programming. |
| High-Speed Machining | Equipped with powerful spindles and advanced control systems, 5-axis CNC machines deliver high-speed machining capabilities for increased productivity. |
| Advanced Control Systems | Offering sophisticated control systems, Penta Machine desktop 5-axis CNC machines provide precise control over machining operations, ensuring accurate results. |
| Portability | Pocket NC CNC machines are designed for portability, allowing users to bring precision machining capabilities to different locations as needed. |
| Customizable Options | Tailoring to specific requirements, desktop 5-axis CNC milling machines offer customizable options such as tool changers, coolant systems, and enclosures. |
| High-Quality Construction | Built with durable materials and precision engineering, Pocket NC 5-axis CNC machines ensure long-term reliability and consistent performance. |
| Integration with CAD/CAM Software | Seamless integration with CAD/CAM software facilitates efficient programming and machining of complex geometries. |
| Automated Toolpath Generation | Utilizing advanced CAM software, desktop 5-axis CNC milling machines automate toolpath generation, streamlining the machining process and reducing programming time |
Desktop 5-axis CNC machines are ideal for rapid prototyping in various industries such as automotive, aerospace, and consumer electronics. They allow engineers and designers to quickly iterate through designs and produce functional prototypes with intricate geometries.
Small 5-axis CNC machines are commonly used for producing miniature components with high precision and intricate details. Industries such as medical device manufacturing, jewelry making, and electronics rely on these machines to fabricate small, complex parts.
Desktop and tabletop 5-axis CNC machines are employed in mold making processes for producing intricate molds with complex contours. This is crucial in industries like injection molding and die casting, where mold accuracy directly impacts the quality of the final product.
Mini 5-axis CNC machines are utilized in aerospace manufacturing for producing complex components like turbine blades, engine parts, and aircraft structural components. These machines enable aerospace engineers to manufacture lightweight and aerodynamic parts with tight tolerances.
Small 5-axis CNC machines find applications in the dental industry for manufacturing dental prosthetics, crowns, bridges, and implants. These machines offer the precision and surface finish required for producing custom dental restorations that fit perfectly and ensure patient comfort.
Desktop 5-axis CNC machines are widely used in the jewelry industry for creating intricate designs on various materials like gold, silver, platinum, and gemstones. These machines enable jewelry designers to produce highly detailed pieces with intricate patterns and textures.
Tabletop and desktop 5-axis CNC machines are valuable tools in educational settings, providing students with hands-on experience in CAD/CAM programming and advanced machining techniques. These machines help students learn about complex machining processes and develop skills applicable across various industries.
Pocket NC 5-axis CNC machines are utilized in research laboratories and academic institutions for conducting experiments, prototyping new technologies, and exploring innovative manufacturing processes. These machines allow researchers to fabricate custom components and test novel designs efficiently.
Pocket NC CNC machines are increasingly used by small-scale manufacturers and artisans to produce customized products with unique shapes and features. These machines offer flexibility in manufacturing low-volume, high-value components, catering to niche markets and personalized product demands.
Pocket NC CNC machines have gained traction in the Indian market, especially among research institutions, educational institutions, and small-scale manufacturers. These machines contribute to advancing manufacturing capabilities in India by offering precision machining solutions for various applications.
Mumbai | Delhi | Bangalore | Kolkata | Chennai | Hyderabad | Pune | Ahmedabad | Surat | Jaipur | Lucknow | Kanpur | Nagpur | Patna | Indore | Bhopal | Gwalior | Jabalpur | Vadodara | Anand | Rajkot | Ahmednagar | Akola | Ambarnath | Amravati | Aurangabad | Barshi | Beed | Bhiwandi-Nizampur Mc | Bhusawal | Chandrapur | Dharashiv | Dhule | Gondia | Ichalkaranji | Jalgaon | Jalna | Kalyan-Dombivli | Kolhapur | Latur | Malegaon | Mira-Bhayandar | Nanded | Nashik | Navi Mumbai | Palghar | Panvel | Parbhani | Pimpri-Chinchwad | Raigad | Sangli | Sangli-Miraj-Kupwad | Satara | Solapur | Thane | Thane & Palghar | Udgir | Ulhasnagar | Vasai-Virar City Mc | Yavatmal | Belgavi | Hubli | Manglore | Gulbarga | Sangareddy | Warangal | Secundarabad | Amaravati | Vijaywada | Visakhapattanam | Coimbatore | Tiruchachirapalli | Salem | Kochi | Thiruvanantapuram | Ernakulam | Bhubaneshwar | Cuttack | Rourkela | Bhadrak | Bokaro | Jamshedpur | Ranchi
At CAD Mech Engineering Pvt. Ltd., we take pride in being a leading manufacturer and supplier of cutting-edge desktop 5-axis CNC machines. Our commitment to innovation and precision engineering ensures that our machines meet the highest standards of quality and performance. Whether you're in need of a desktop 5-axis CNC machine for rapid prototyping, miniature component machining, or any other application, we have the perfect solution for you.
Desktop 5 Axis CNC Machine for Precision Milling:
Our desktop 5-axis CNC machines are designed to deliver exceptional precision and accuracy in milling operations. With simultaneous movement in five axes, these machines offer unparalleled versatility, allowing you to tackle even the most complex geometries with ease. Whether you're producing prototypes, small parts, or intricate molds, our desktop 5-axis CNC machines ensure superior results every time.
Desktop 5 Axis CNC Milling for Rapid Prototyping:
Speed up your product development cycle with our desktop 5-axis CNC milling machines tailored for rapid prototyping. By combining advanced CNC technology with rapid toolpath generation, we enable you to quickly iterate designs and bring your concepts to life with precision and efficiency. Say goodbye to long lead times and hello to rapid innovation with our desktop 5-axis CNC machines.
Mini 5 Axis CNC Machine for Small-Scale Manufacturing:
Our mini 5-axis CNC machines are perfect for small-scale manufacturing tasks where space is limited, but precision is paramount. These compact machines pack a punch, offering the same level of accuracy and performance as their larger counterparts. Whether you're crafting intricate jewelry, electronic components, or medical devices, our mini 5-axis CNC machines deliver exceptional results.
Small 5 Axis CNC for Miniature Component Machining:
Precision machining of miniature components requires specialized equipment, and our small 5-axis CNC machines are up to the task. With their compact size and advanced control systems, these machines excel at producing tiny parts with intricate details. From dental prosthetics to microelectronics, our small 5-axis CNC machines provide the precision you need for miniature component machining.
Desktop 5 Axis CNC Machine for Rapid Prototyping and Small 5 Axis CNC for Miniature Component:
Our desktop 5-axis CNC machines are not only perfect for rapid prototyping but also excel in machining miniature components with utmost precision. Whether you're iterating designs or producing small parts, our desktop 5-axis CNC machines offer the versatility and accuracy required for both rapid prototyping and miniature component machining.
Tabletop 5 Axis CNC Machine for Versatile Machining:
Looking for a versatile machining solution that doesn't compromise on performance? Our tabletop 5-axis CNC machines are the answer. Compact yet powerful, these machines can handle a wide range of machining tasks with ease. Whether you're milling, drilling, or engraving, our tabletop 5-axis CNC machines deliver consistent results, making them a valuable asset in any workshop.

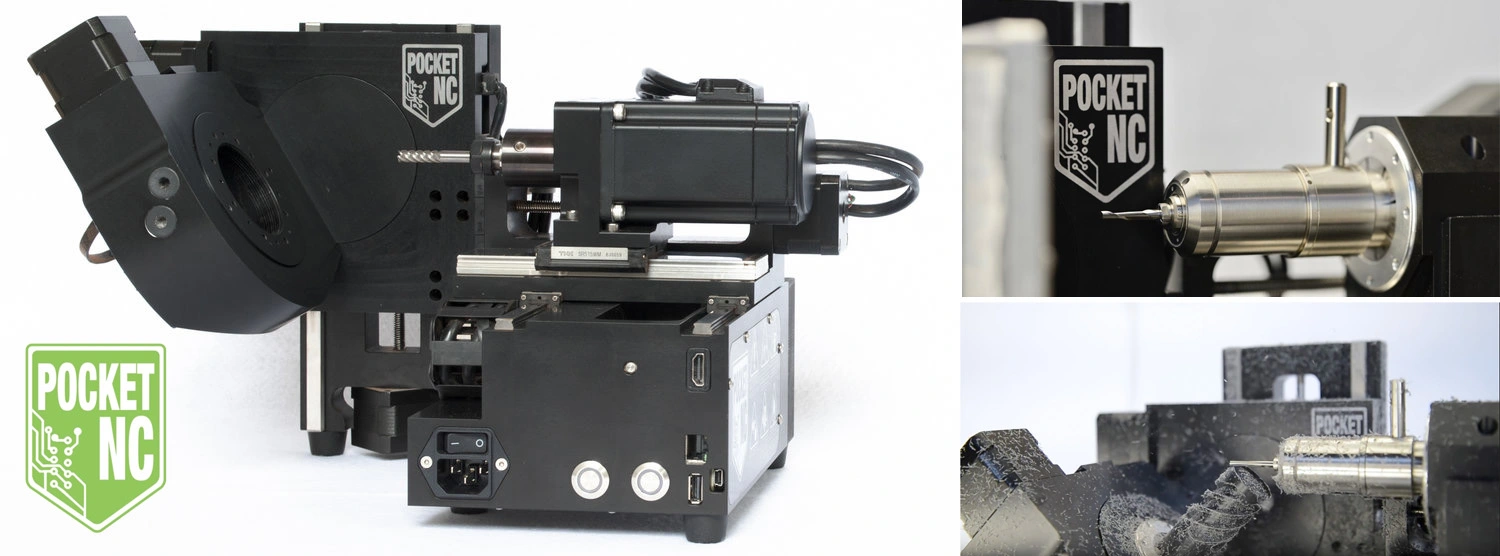

Pocket NC 5 Axis CNC for Portable Precision:
Take precision machining wherever you go with our Pocket NC 5-axis CNC machines. Designed for portability without sacrificing accuracy, these machines are perfect for on-the-go machining tasks. Whether you're in the field, in the classroom, or in your garage, our Pocket NC 5-axis CNC machines ensure precision machining wherever you are.
Pocket NC CNC in India: Bringing Advanced Machining to Your Doorstep:
Experience the power of Pocket NC CNC machines right here in India. As a trusted supplier of Pocket NC CNC machines, we bring advanced machining technology to your doorstep, enabling you to tackle complex machining tasks with ease. Whether you're a hobbyist, a researcher, or a small-scale manufacturer, our Pocket NC CNC machines empower you to achieve precision machining like never before.
Penta Machine Desktop 5 Axis CNC Machine: Setting the Standard for Precision and Performance:
Our Penta Machine desktop 5-axis CNC machines are engineered to set the standard for precision and performance in desktop machining. With their advanced control systems and robust construction, these machines deliver exceptional results in a compact package. Whether you're a hobbyist, a professional, or an educational institution, our Penta Machine desktop 5-axis CNC machines provide the precision and reliability you need for your machining projects.
At CAD Mech Engineering Pvt. Ltd., we're committed to providing you with the best-in-class desktop 5-axis CNC machines that meet your specific needs. Contact us today to learn more about our products and how they can benefit your business.
/_6000425.JPG)
/_6001194.JPG)
